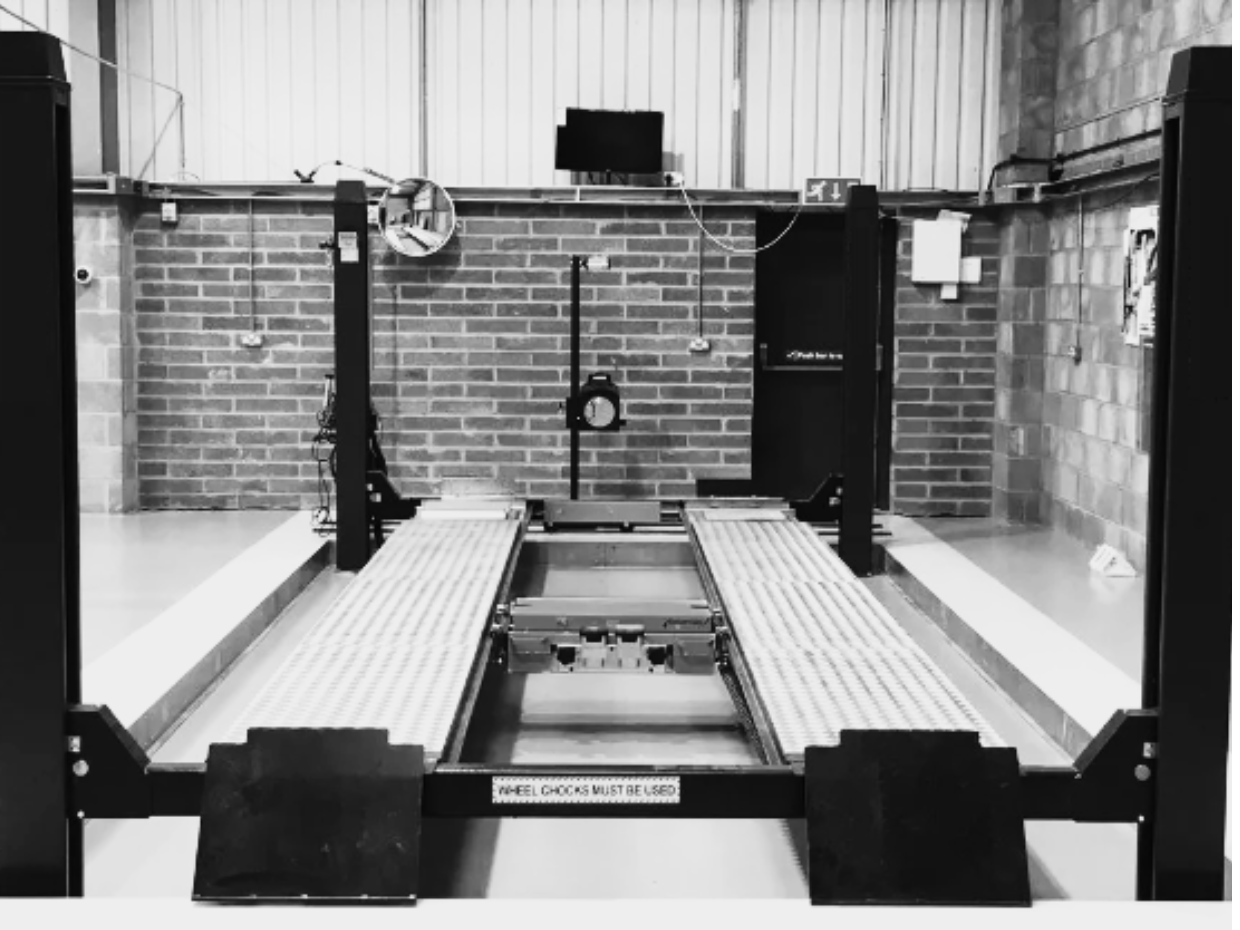

4-Post Lift

Crypton’s 4-Post lifts are manufactured to the highest quality and safety features in the industry to ensure your MOT bay will have the reliability and efficiency it needs with an excellent return on investment.

Our 4-Post lifts are available in a range of lifting capacities and platform lengths to accommodate your needs. From recessed to surface mounted, our 4-Post lifts are suitable for class 4 vehicles up to 4.0 tonnes and class 7 vehicles, including motorhomes up to 5.0 tonnes.

Each 4-Post lift is supplied with a brake pedal depressor, wheel play detectors and turntables as standard, as well as our popular checker plate surface. This not only is extremely attractive in your workshop, but provides maximum protection against corrosion.

With a modern dark grey appearance, our 4-Post lift provides a consistent brand image throughout our range, whilst blending in with other workshop equipment.

Available on its own or as an OPTL or ATL for MOT testing. See what's included under the "features" tab below.
Description

Features

4-Post Lifts:

  • Available as surface-mounted or recessed
  • Suitable for class 4 and class 7 vehicles
  • 4t and 5t options
  • Turntables
  • Wireless wheel play detectors
  • Brake pedal depressor
  • Attractive checker plate surface
  • Installation
  • Standard delivery

Crypton's 4-Post lift can be bought on its own or as a One Person Test Lane or Automated Test Lane. Take a look at what you get in our OPTL & ATL packages below.

Enquire about Scissor lifts here

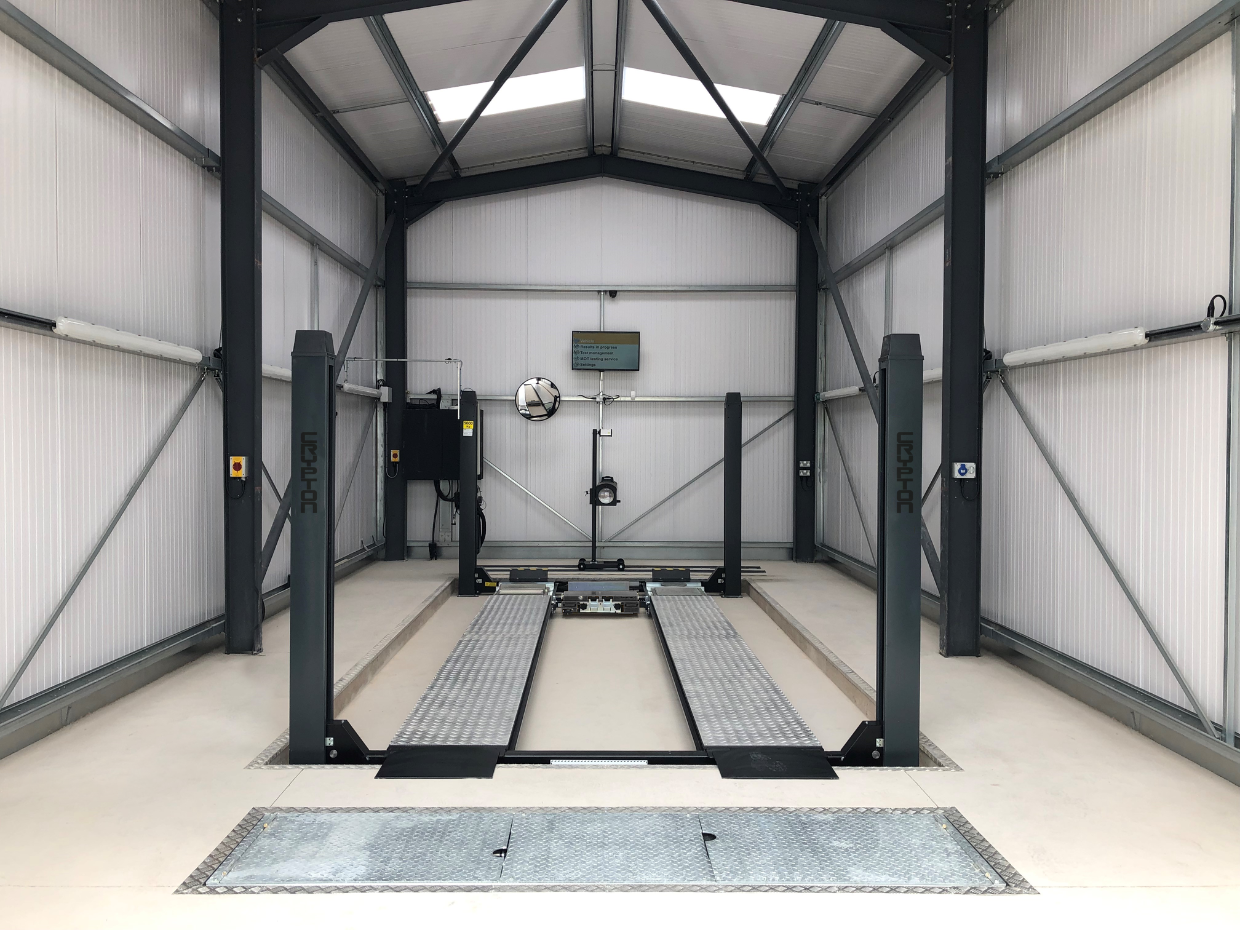

MOT Bay / Automated Test Lane (ATL)

Our MOT bays/ATLs are a solid investment to boost productivity and profitability. Our scissor lifts are designed to allow one technician to complete an MOT test efficiently, allowing other technicians to work on other profitable jobs without added labour costs.

Read more about our MOT bays and ATL packages here.


Includes:

  • 4-Post Lift
  • Combined emissions analyser
  • Automated brake tester
  • Wireless wheel play detectors with LED torch
  • Turntables
  • Jacking beam
  • Headlight aligner
  • Brake pedal depressor
  • Inspection mirrors
  • Attractive checker plate surface
  • Overload safety valve
  • Automatic descent controls
  • "Dead-man" controls
  • Mechanical safety device
  • Project manager
  • Site survey & CAD drawings
  • Installation
  • Standard delivery
  • 3 years manufacturer's warranty

Optional:

  • Brake tester adaptor kits for motorbikes and 4x4's
  • Wall mounted 40" monitor (installation included)
  • Wireless tablet
  • 5 years extended care
Enquire about ATL lifts here

One Person Test Lane (OPTL)

Our OPTL is a great solution to replace and upgrade your existing MOT equipment.

Read more about our OPTL packages here.


Includes:

  • 4-Post lift
  • Wheel play detectors with LED torch
  • Turntables
  • Jacking beam
  • Headlight aligner
  • Brake pedal depressor
  • Inspection mirrors
  • Attractive checker plate surface
  • Installation
  • Standard delivery
Enquire about OPTL lifts here

Technical Specifications

 Class IVClass VIIClass VIIClass VII
Specifications of 4 post liftsC4L840/841C4L870/871C4L870L/871LC4L874/875
Lifting capacity 4000kg 4000kg 5000kg 5000kg
Lifting height 1830mm 1830mm 1830mm 1830mm
Lowering time 45 sec 45 sec 45 sec 45 sec
Runway width 565mm 630mm 630mm 630mm
Runway length 4560mm 5200mm 5700mm 6500mm
Total width (inc posts) 3080mm 3230mm 3230mm 3230mm
Motor 3.0kW 3.0kW 3.0kW 3.0kW
Power supply 400/50 V/Hz 400/50 V/Hz 400/50 V/Hz 400/50 V/Hz
Supply fuse T16A T16A T16A T16A

Manuals & Brochure

MOT Brochure

4-Post Lift (CFL640/CFL641, Class 4) - Manual

4-Post Lift (CFL670/CFL671DR, Class 7) - Manual

4-Post Lift (CFL670L/CFL671LDR, Class 7) - Manual

4-Post Lift (CFL870XL/CFL871XL, Class 7) - Manual

40" Wall-Mounted TV - Manual

Product Codes

Class 4 4-Post Lift
Product
Headlamp Aligner
2x Convex Mirrors
Brake Pedal Depressor
Hydraulic Play Detectors & Turntables
Manual 2t Jacking Beam
Manual 2.8t Jacking Beam
Wireless Emissions Tester
Cabled Emissions Tester
Trolley with Computer
ATL Brake Tester
4,000kg (4.56m) Surface Mounted Lift
4,000kg (4.56m) Recessed Lift
4,000kg (5.2m) Surface Mounted Lift
4,000kg (5.2m) Recessed Lift
5,000kg (5.7m) Surface Mounted Lift
5,000kg (5.7m) Recessed Lift
5,000kg (6.5m) Surface Mounted Lift
5,000kg (6.5m) Recessed Lift
Rear slip plates
4-Post Lifts
A2C9635820000
A2C9635790000
4-Post OPTL Packages
C4O640
C4O641
C4O642
C4O643
C4O672
C4O673
C4O874
C4O875
4-Post ATL Packages
C4L840-C-EN000
C4L841-C-EN000
C4L842-C-EN000
C4L842D-C-EN000
C4L843-C-EN000
C4L843D-C-EN000
C4L844-C-EN000
C4L844D-C-EN000
C4L845-C-EN000
C4L854D-C-EN000
C4L846-C-EN000
C4L847-C-EN000
C4L840-C-EN570
C4L841-C-EN570
C4L842-C-EN570
C4L842D-C-EN570
C4L843-C-EN570
C4L843D-C-EN570
C4L844-C-EN570
C4L844D-C-EN570
C4L845-C-EN570
C4L845D-C-EN570
C4L846-C-EN570
C4L847-C-EN570
C4L840-B-EN570
C4L841-B-EN570
C4L842-B-EN570
C4L842D-B-EN570
C4L843-B-EN570
C4L843D-B-EN570
C4L844-B-EN570
C4L844D-B-EN570
C4L845-B-EN570
C4L845D-B-EN570
C4L846-B-EN570
C4L847-B-EN570
Class 7 4-Post Lift
Product
Headlamp Aligner
2x Convex Mirrors
Brake Pedal Depressor
Hydraulic Play Detectors & Turntables
Manual 2.8t Jacking Beam
Wireless Emissions Tester
Cabled Emissions Tester
Trolley with Computer
ATL Brake Tester
4,000kg (5.2m) Surface Mounted Lift
4,000kg (5.2m) Recessed Lift
5,000kg (5.7m) Surface Mounted Lift
5,000kg (5.7m) Recessed Lift
5,000kg (6.5m) Surface Mounted Lift
5,000kg (6.5m) Recessed Lift
Rear slip plates
4-Post Lifts
CFL870
CFL871
CFL870XL
CFL871XL
4-Post OPTL Packages
C4O670
C4O671
C4O672
C4O673
C4O874
C4O875
4-Post ATL Packages
C4L870-C-EN000
C4L871-C-EN000
C4L872-C-EN000
C4L872D-C-EN000
C4L873-C-EN000
C4L873D-C-EN000
C4L874-C-EN000
C4L875-C-EN000
C4L870-C-EN570
C4L871-C-EN570
C4L872-C-EN570
C4L872D-C-EN570
C4L873-C-EN570
C4L873D-C-EN570
C4L874-C-EN570
C4L875-C-EN570
C4L870-B-EN570
C4L871-B-EN570
C4L872-B-EN570
C4L872D-B-EN570
C4L873-B-EN570
C4L873D-B-EN570
C4L874-B-EN570
C4L875-B-EN570
