Crypton’s Scissor lift is a serious piece of kit and extremely versatile with several different platform lengths and load capacities for class 4 and class 7 vehicles.

Its compact design and absence of posts offers a completely obstruction-free solution for workshops looking to maximise available space. Also, it's popular quality checker plate surface is extremely attractive, whilst providing maximum protection against corrosion in your workshop for a long-term investment.

The scissor lift is supplied with a brake pedal depressor & turntables as standard, as well as wirelessly-operated play detectors for flexibility & a safer working environment.

The jacking beam rail is positioned underneath the platform to remain debris-free, allowing it to run smoothly with very little maintenance.

The two independent hydraulic systems guarantees a quiet, powerful and reliable synchronisation every time & the ability to safely lock at your desired height.

Our scissor lift can be bought on its own or as an OPTL or ATL for MOT testing. See what's included in our packages under the "features" tab below.
Description

Features

Scissor Lifts:

  • Available as surface-mounted or recessed
  • Suitable for class 4 and class 7 vehicles
  • 4t and 5t options
  • Turntables
  • Wireless wheel play detectors
  • Brake pedal depressor

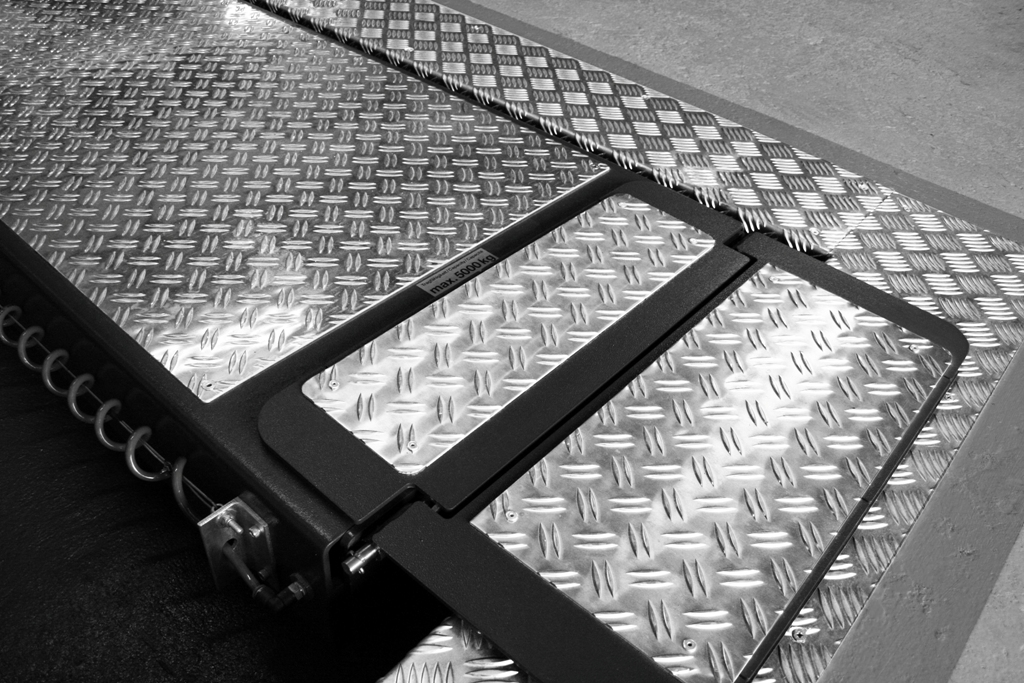

  • Attractive checker plate surface
  • Installation
  • Standard delivery

Crypton's scissor lift can be bought on its own or as a One Person Test Lane or Automated Test Lane. Take a look at what you get in our OPTL & ATL packages below.

Enquire about Scissor lifts here

MOT Bay / Automated Test Lane (ATL)

Our MOT bays/ATLs are a solid investment to boost productivity and profitability. Our scissor lifts are designed to allow one technician to complete an MOT test efficiently, allowing other technicians to work on other profitable jobs without added labour costs.

Read more about our MOT bays and ATL packages here.


Includes:

  • Scissor Lift
  • Combined emissions analyser
  • Automated brake tester
  • Wireless wheel play detectors with LED torch
  • Turntables
  • Jacking beam
  • Headlight aligner
  • Brake pedal depressor
  • Inspection mirrors
  • Attractive checker plate surface
  • Project manager
  • Site survey & CAD drawings
  • Installation
  • Standard delivery
  • 3 years manufacturer's warranty

Optional:

  • Brake tester adaptier kits for motorbikes and 4x4's
  • Wireless tablet
  • 5 years extended care
Enquire about ATL lifts here

One Person Test Lane (OPTL)

Our OPTL is a great solution to replace and upgrade your existing MOT equipment.

Read more about our OPTL packages here.


Includes:

  • Scissor lift
  • Wireless wheel play detectors with  LED torch
  • Turntables
  • Jacking beam
  • Headlight aligner
  • Brake pedal depressor
  • Inspection mirrors
  • Attractive checker plate surface
  • Installation
  • Standard delivery
Enquire about OPTL lifts here

Technical Specifications

 Class 4Class 7
Specifications of the Platform Scissor LiftCTL843/844CTL870/871
Standard in ground
Lifting capacity 4000kg 5000kg
Lifting 1770mm (approx) 1630mm (approx)
Lowering time 20 sec (approx) 38 sec (approx)
Runway 600mm 635mm
Runway length 4540mm 5460mm
Total width 2150mm (Pit) 2225mm (Pit)
Motor 3.0kW 3.0kW
Power supply 400/50 V/Hz 400/50 V/Hz
Supply fuse T16A T16A

Downloads

Brochure 2018

Scissor Lift (CSL640/CSL641, Class 4) - Manual

Scissor Lift (CSL670/CSL671, Class 7) - Manual

Scissor Lift (CSL872/CSL873, Class 7) - Manual

Product Codes

Class 4 Scissor Lift
Product
Headlamp Aligner
2x Convex Mirrors
Brake Pedal Depressor
Wireless Play Detectors & Turntables
Air/Hyd 2t Jacking Beam
Wireless Emissions Tester
Cabled Emissions Tester
ATL Brake Tester
4,000kg (4.54m) Surface Mounted Lift
4,000kg (4.54m) Recessed Lift
Scissor Lifts
A2C14342200
A2C14342300
Scissor OPTL Packages
CSO644
CSO643
Scissor ATL Packages
CTL844-C-EN000
CTL843-C-EN000
CTL844-C-EN570
CTL843-C-EN570
CTL844-B-EN570
CTL843-B-EN570
Class 7 Scissor Lift
Product
Headlamp Aligner
2x Convex Mirrors
Brake Pedal Depressor
Wireless Play Detectors & Turntables
Air/Hyd 2t Jacking Beam
Wireless Emissions Tester
Cabled Emissions Tester
ATL Brake Tester
5,000kg (5.46m) Surface Mounted Lift
5,000kg (5.46m) Recessed Lift
Scissor Lifts
A2C99556300
A2C14342300
Scissor OPTL Packages
CSO670
CSO671
Scissor ATL Packages
CTL870-C-EN000
CTL871-C-EN000
CTL870-C-EN570
CTL871-C-EN570
CTL870-B-EN570
CTL871-B-EN570
ProductDescription
Wireless Tablet Driven ATL
A2C38192800 10" Tablet, WiFi dongle & Network cable.
  Optional with Combined Emissions Analyser or Automated Test Lane.
  Subject to your internet connection confirming to DVSA specification.
  Separate internet connection is not included as part of the package.
