Crypton Tyre Changers, born in Correggio, Italy. Easy to operate, affordable, yet versatile equipment for your workshop.
Features :

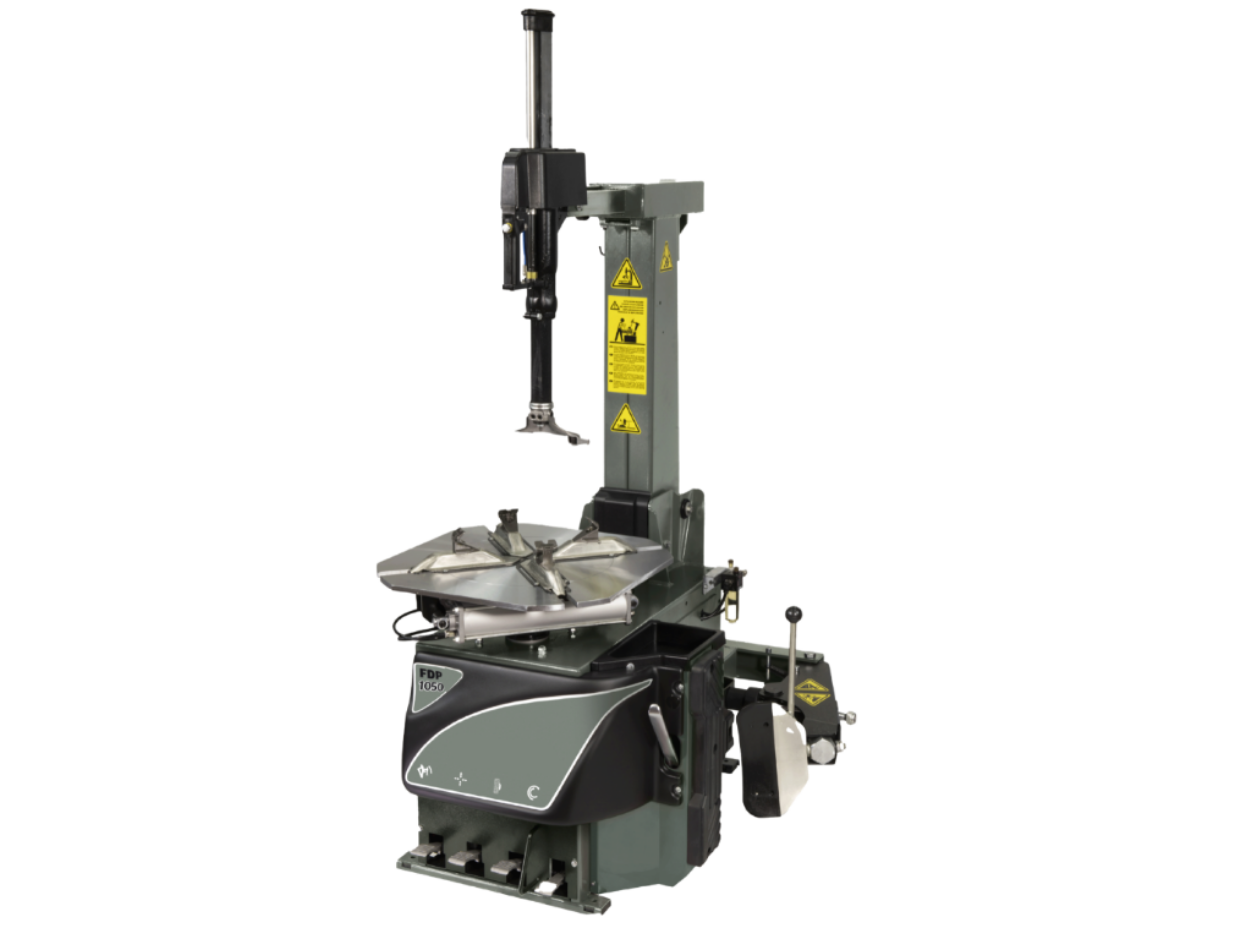

FDP1050
- Smart Rim capacity form 10” to 24”
- Pneumatic tilting column by pedal control, reinforced
- Pneumatic control for up/down operating mounting head
- Double acting bead breaker cylinder
- Inverter technology for variable rotation speed, controlled by the pedal
- Plastic protection on the mounting head, jaws and B/B blade to prevent damage to alloy rims
- Easy maintenance
- RF system
Technical Specification
|
FDP1050
|
|
| Max wheel width | 340mm (13”) |
| Outside locking capacity | 10” - 22” |
| Inside locking capacity | 12” - 24” |
| Working pressure | 8 - 10 bar |
| Bead breaker power | 2500Kg |
| Bead breaker max opening | 390mm |
| Rotation speed | 6 - 12rpm |
| Max wheel diameter | 1000mm (39”) |
| Power supply | 230v 50 - 60hz 1ph |
| Net weight | 329Kg |
