Crypton Tyre Changers, born in Correggio, Italy. Easy to operate, affordable, yet versatile equipment for your workshop.
Features:

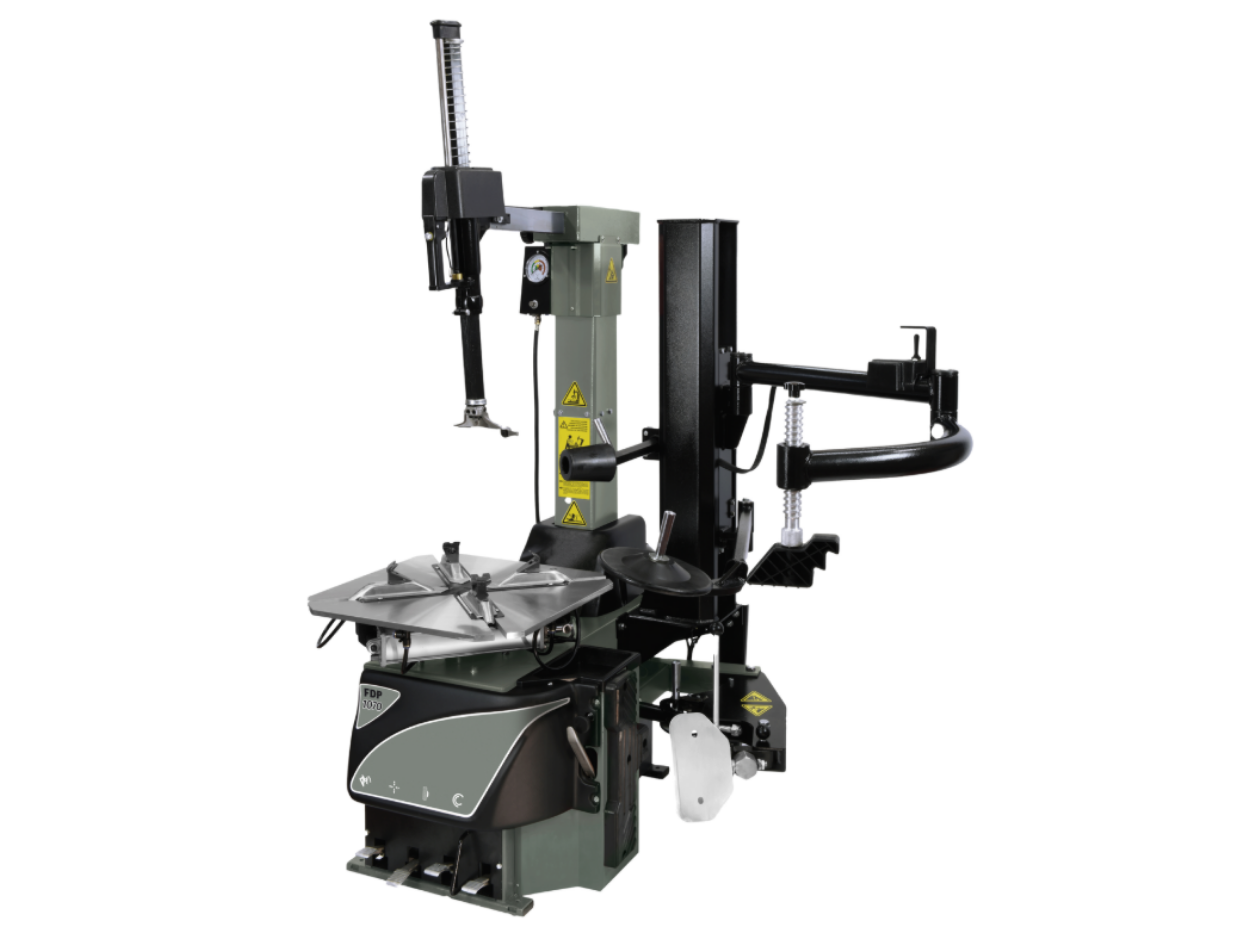

FDP1070
- Automatic tyre changer for cars and light commercial vehicles, suitable for low profile and run flat tyre as well as for sport alloy rims.
- Smart Rim capacity form 12” to 26”
- Pneumatic control for up/down operating mounting head
- A pneumatic system which raises the arm, the column can be lifted higher enabling this way to operate on wheels of 15” width.
- Pneumatic tilting column by pedal control
- The bead breaker offers two different positions in order to facilitate the bead-breaking operation on wheels of all diameters.
- Double acting bead breaker cylinder
- Equipped with the special built in device for tubeless inflation, pedal operated, with air tank
- Inverter technology for variable rotation speed, controlled by the pedal
- Plastic protection on the mounting head, jaws and bead breaker blade to prevent damage to alloy rims.
Technical Specification
|
FDP1070
|
|
| Max wheel width | 400mm (15”) |
| Outside locking capacity | 12”-24” |
| Inside locking capacity | 15-26” |
| Working pressure | 8 - 10 bar |
| Bead breaker power | 3000Kg |
| Bead breaker max opening | 390mm |
| Rotation speed | 6 - 12rpm |
| Max wheel diameter | 1100mm (43”) |
| Power supply | 230v 50 - 60hz 1ph |
| Net weight | 329Kg |
