Crypton Wheel Balancers , born in Correggio, Italy. Easy to operate, affordable, yet versatile equipment for your workshop.
Features

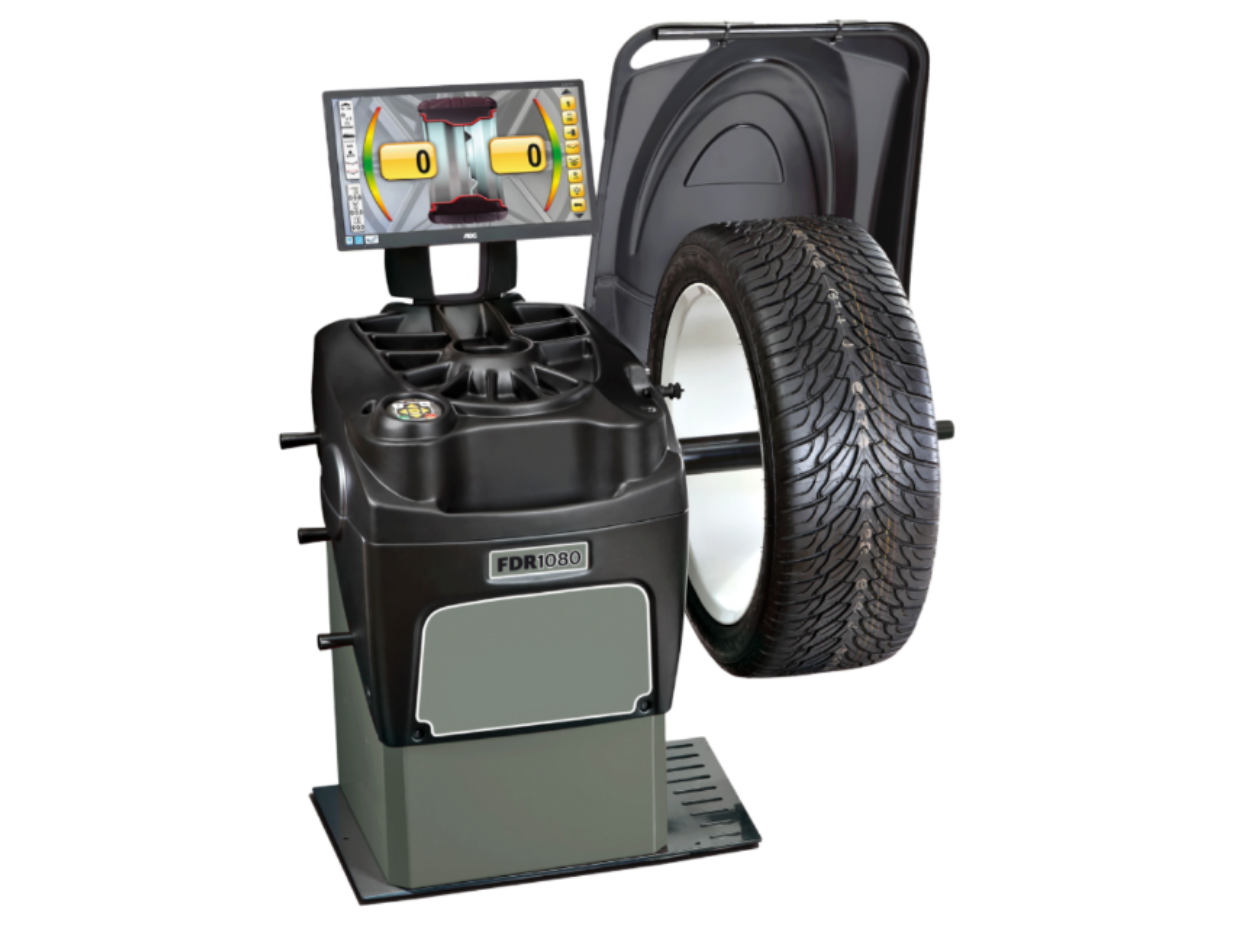

FDR1080
-
- 22” LCD monitor with VESA mount
- Smart controls keypad
- Automatic 3D data entry via sonar (Distance - Diameter - Width)
- Innovative sensor gauge for diameter and distance data entry for ALU rims that automatically start ALU special balancing program without keyboard
- Electromagnetic brake with automatic search of the unbalance position
- LED lighting to illuminate the working area (helpful for inner gauge positioning and weights application)
- Laser indicator for applying adhesive weights
- Software update through USB key
- ALU + ALU special program
- 6 o’clock weight positioning (ALU special program)
- Off road specific program
- 2 balancing programs for motorbike wheels
- Hidden weight and split weight program
- 2 balancing programs for motorbike wheels
- Hidden weight and split weight program
Technical Specification
|
FDR1080
|
|
| Max wheel diameter | 1120mm (44”) |
| Power supply | 230v 50 - 60hz 1ph |
| Net weight | 170Kg |
| Max Wheel weight | 75Kg |
| Rim Width | 590mm |
| Settable rim diameter | 8” – 35” |
| RPM | 140rpm |
| Balancing precision | 1gram |
| Balancing Speed | 5.5Sec |
