CCP1000 Combined Emissions Analyser

The CCP1000 series is a market-leading combined smoke and gas emissions analyser, DVSA approved as Connected Equipment for testing petrol and diesel engines.

Developed using decades of Crypton expertise, the CCP1000 is available with either a cabled or Bluetooth smoke head, supported by a wide range of accessories to provide maximum flexibility for today’s workshops.

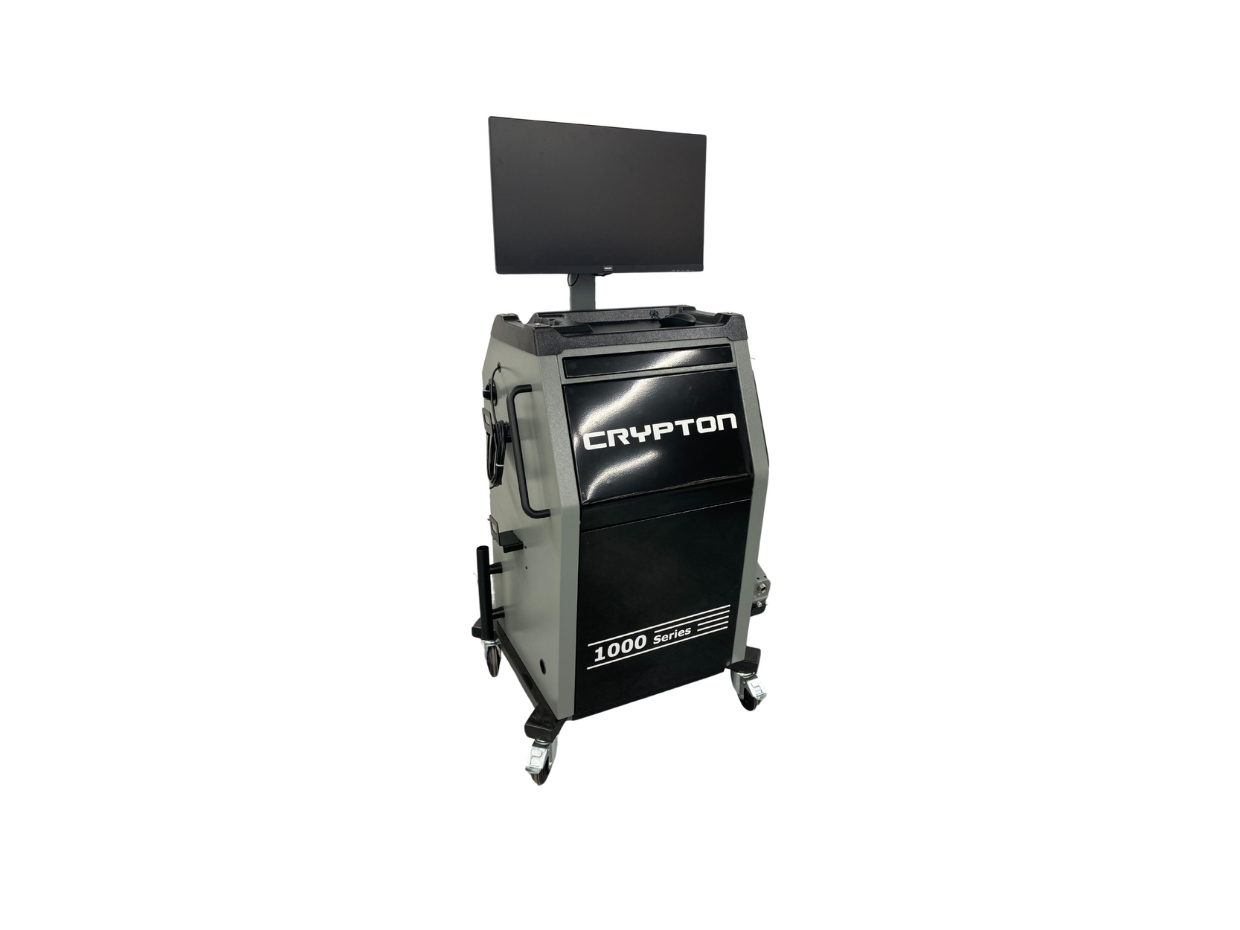

At the centre of the system is the Control Centre, which operates both the emissions analyser and, when purchased, the Crypton brake tester. Housed in a robust, mobile cabinet, it is built to withstand the demands of a busy garage environment.

The CCP1000 cabinet has been designed from the outset to accommodate a Particulate Number Counter (PNC) module, ensuring the system is prepared for future legislative requirements.

Technical Specification

Model	CCP1000-B-EN570	CCP1000-C-EN570
Part number	2804040002301	2804040001301
Description	Bluetooth Combi	Cabled Combi
OIML R99 Class 0 Gas analyser	Cabled	Cabled
Smoke meter (Catergories A&B)	Bluetooth	Cabled
Battery RPM pick up	Bluetooth	Cabled
Oil temperature probe	Bluetooth	Cabled
DAD C1 VCI	Included	Option
Quickchange charging pins	Included	N/A
Width	750mm	750mm
Depth	630mm	630mm
Height including monitor	1640mm	1640mm
Power requirement	230V 13Amp	230V 13Amp

A large 27" colour display allows test results to be viewed clearly from across the workshop, with the option to add a 40" wall-mounted monitor for even greater visibility.

The CCP1000 cabinet has been designed from the outset to accommodate a Particulate Number Counter (PNC) module, ensuring the system is prepared for future legislative requirements.

The CCP1000 is supplied with a 3-year manufacturer’s warranty and calibrated from the factory. To keep your analyser operating at peak performance, a range of calibration contracts is available, or you can upgrade to a 5-year Extended Care Package for complete peace of mind.

The DAD-C1 Vehicle Communication Interface (VCI) is supplied as standard with the Bluetooth combined analyser, delivering fast and accurate engine speed (RPM) and engine temperature data directly into the Diesel MOT emissions test routine. This is also available as an option on the cabled unit.

As all new MOT emissions equipment must operate as connected equipment, a reliable internet connection is required. A cabled internet connection is recommended for optimum reliability.

Frequently asked questions

Our emissions analysers come with a 3 year warranty

All emissions analysers are made by Crypton in the UK

Our emissions testers have a 24 hour lead time with next day delivery when orders are placed before 2pm Monday-Thursday. Orders placed on a Friday will be delivered the following Monday.

Yes. Our emissions testers come with initial calibrations included. You can then take out an annual calibration agreement which includes 2 gas and 1 smoke as required by DVSA. We also have our standard service warranty agreement and 5 years extended care.

You can take out a standard service warranty agreement, a calibration agreement or for complete peace of mind, our 5 years comprehensive package. Our comprehensive package can only be purchased up to 6 months of purchasing the emissions unit.

Yes, we work closely with the GEA & DVSA to ensure our equipment meets the latest regulations. You can be rest assured our smoke meters and gas analysers have connected approval from DVSA.
