Our standalone smoke meter is DVSA and MTS approved for MOT or voluntary test procedures on diesel engines.

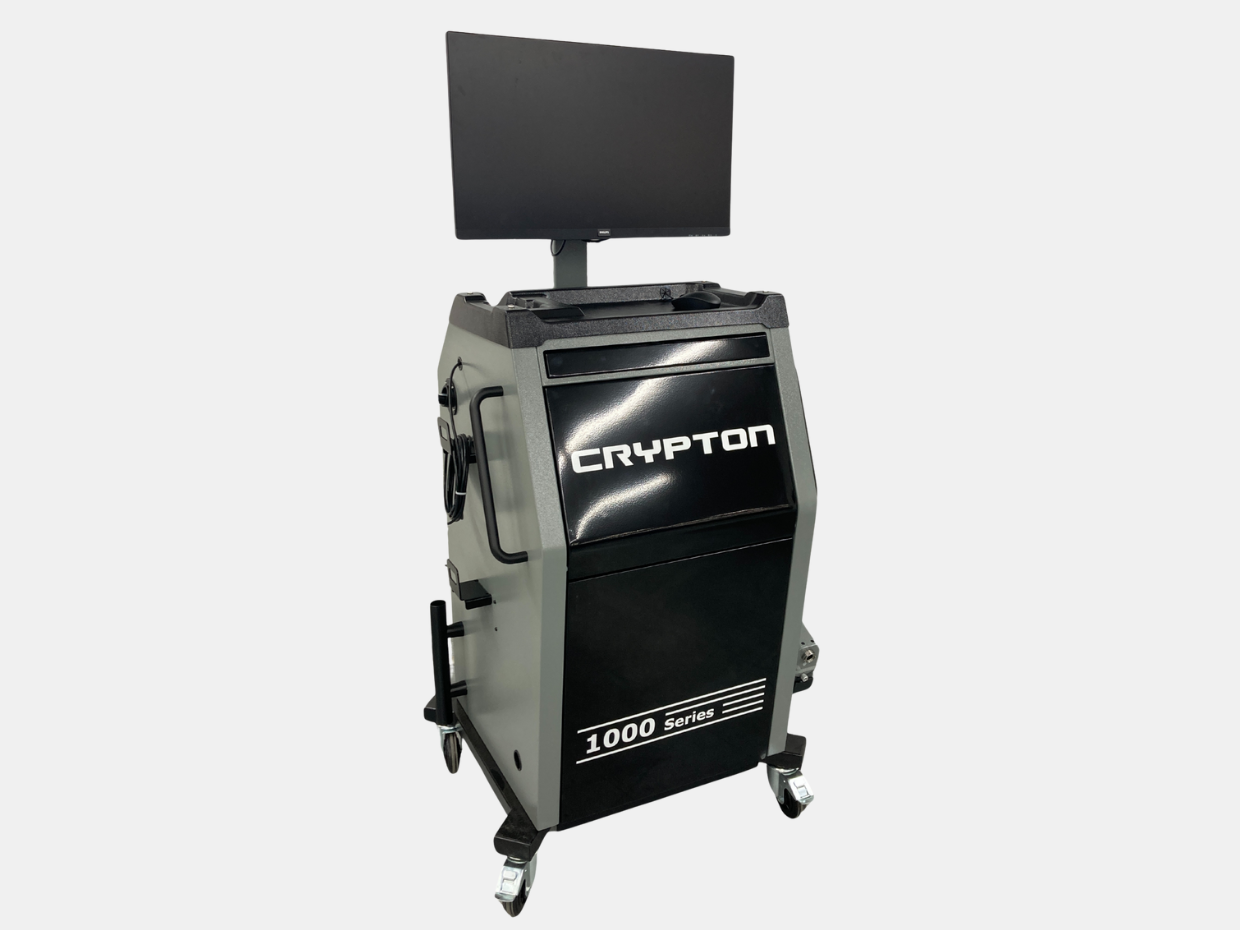

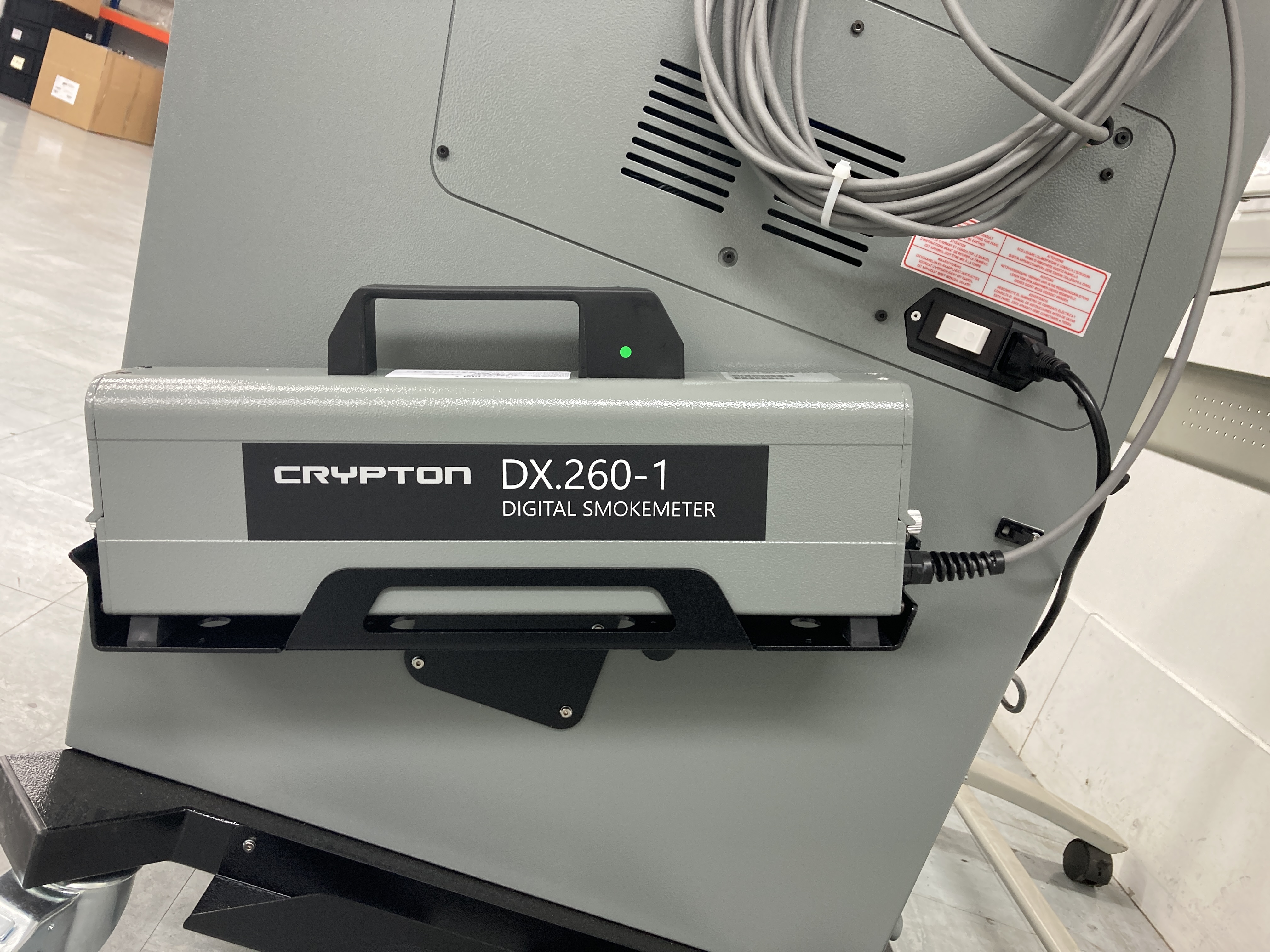

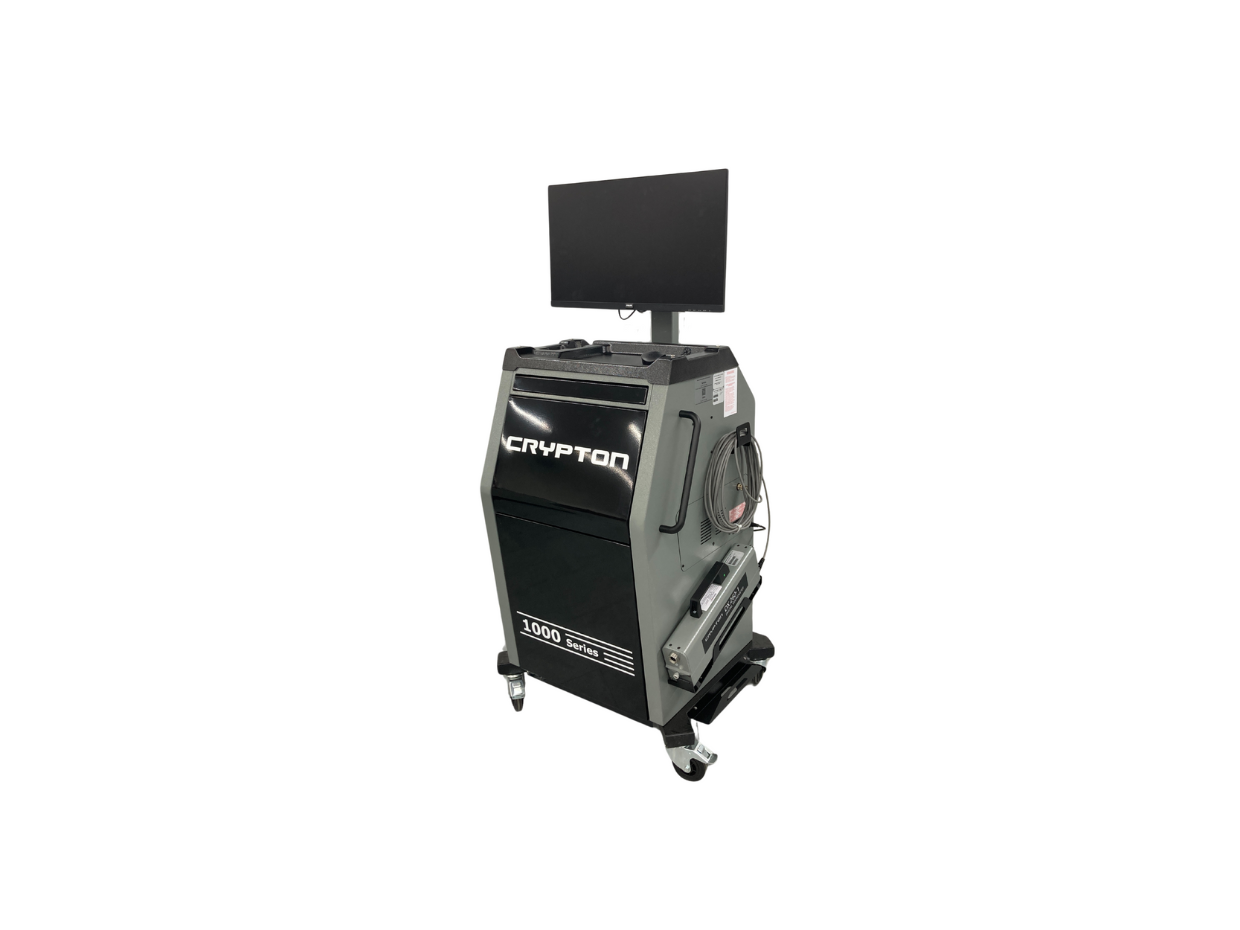

It’s built on our years of experience with the Crypton brand. It’s based on the 1000 series cabinet to allow future housing of a Particulate number counter (PNC) and is available with either cable connected or Bluetooth smoke head and accessories for maximum flexibility.
|
Model
|
CSP1000-B-EN500
|
CSP1000-C-EN500
|
|---|---|---|
| Part number | 2804042001301 | 2804042000301 |
| Description | Bluetooth DSM | Cabled DSM |
| Smoke meter (Catergories A&B) | Bluetooth | Cabled |
| Battery RPM pick up | Option | Option |
| Oil temperature probe | Bluetooth | Cabled |
| DAD C1 VCI | Option | Option |
| Quickchange charging pins | Included | N/A |
| Width | 750mm | 750mm |
| Depth | 630mm | 630mm |
| Height including monitor | 1640mm | 1640mm |
| Power requirement | 230V 13Amp | 230V 13Amp |
Designed to support multiple applications, the smoke meter is suitable for:
Cars and vans
Trucks and buses
Light and heavy plant machinery
A choice of sampling pipe options ensures compatibility with different exhaust configurations.
The integrated charging station keeps the unit warmed and ready for immediate use, reducing downtime. When detached, the automatic standby mode helps preserve battery life, supporting consistent performance throughout the working day.
Please note: current MOT emissions regulations require all new testing equipment to be connected to a reliable internet connection. For maximum stability and compliance, a cabled connection is recommended.
What is the Warranty?
Our emissions analysers come with a 3 year warranty
Where are they made?
All emissions analysers are made by Crypton in the UK
What is the lead time?
Our emissions testers have a 24 hour lead time with next day delivery when orders are placed before 2pm Monday-Thursday. Orders placed on a Friday will be delivered the following Monday.
Does it come with calibrations?
Yes. Our emissions testers come with initial calibrations included. You can then take out an annual calibration agreement which includes 2 gas and 1 smoke as required by DVSA. We also have our standard service warranty agreement and 5 years extended care.
What service contracts are available?
You can take out a standard service warranty agreement, a calibration agreement or for complete peace of mind, our 5 years comprehensive package. Our comprehensive package can only be purchased up to 6 months of purchasing the emissions unit.
Are your emissions testers approved as 'connected equipment'?
Yes, we work closely with the GEA & DVSA to ensure our equipment meets the latest regulations. You can be rest assured our smoke meters and gas analysers have connected approval from DVSA.
Crypton services support you throughout the life of your equipment, including product support, manuals, warranty, and ongoing care—helping you keep your workshop running smoothly and confidently.
