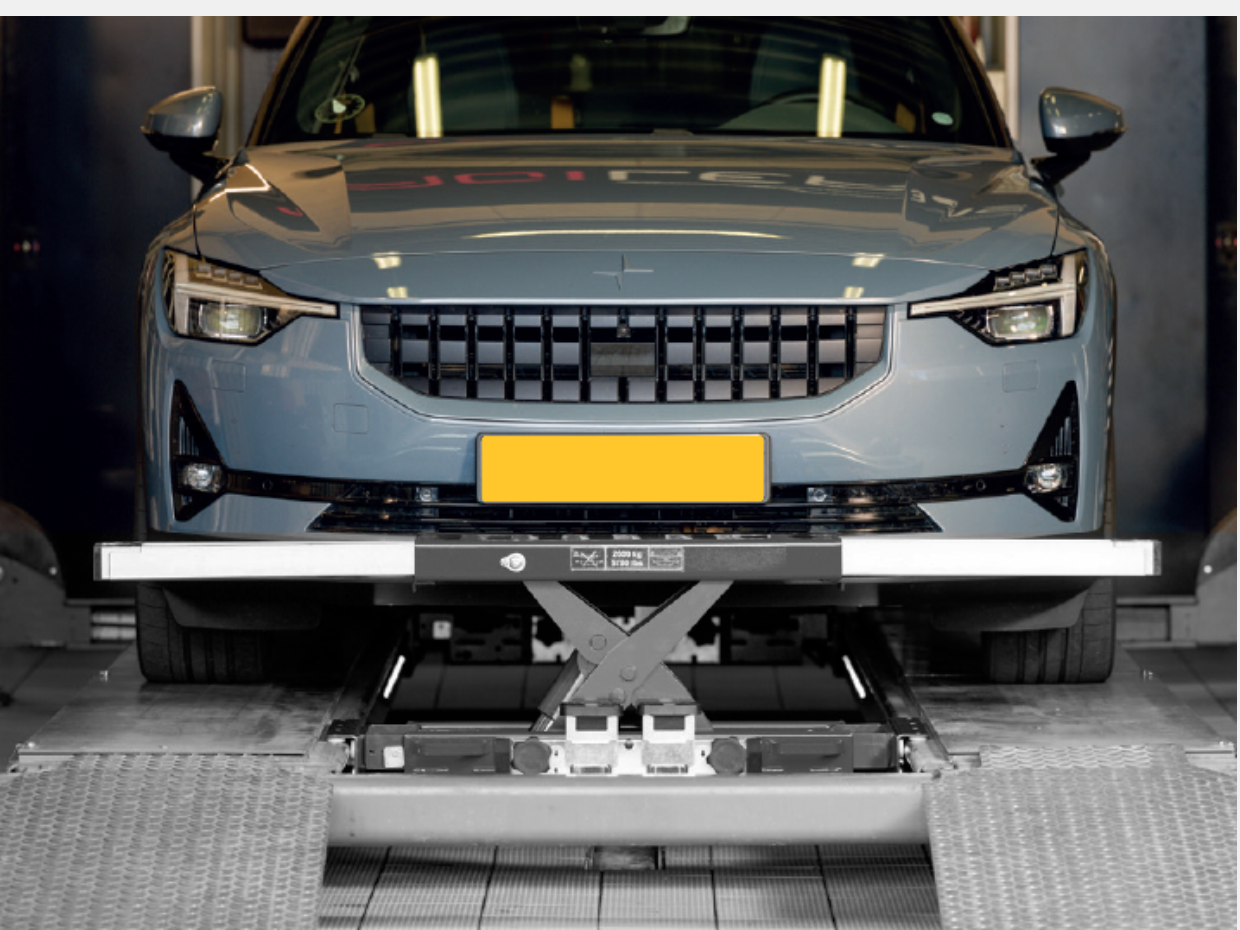

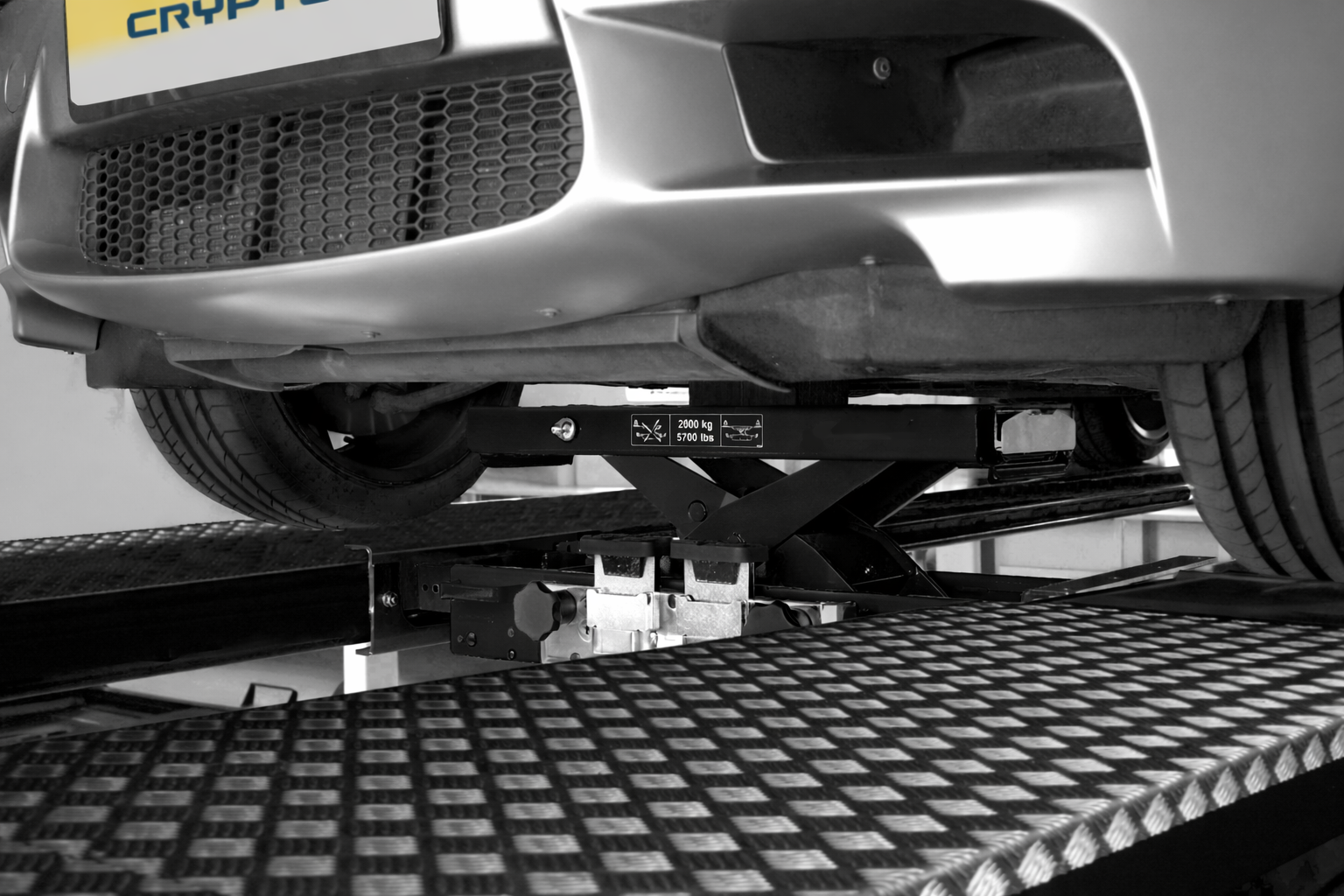

Crypton jacking beams, with widths of 1865 mm, are fully compliant with all legislative requirements. They are designed to easily reach lifting points outside the battery frame, allowing electric vehicles to be lifted safely without risk of battery damage.
The extended width also makes them ideally suited to modern, wider SUVs, ensuring secure and reliable lifting across a broad range of vehicle types.
|
Capacity
|
2000kg / 2600 kg
|
|---|---|
| Operation | Air / Hand Hydraulic |
| Stroke | 250 mm |
| Min. Height | 190 mm |
| Lifting arms | 780 - 1865 mm |
| Lifting frame height | 120 mm |
| Width (without mounting brackets) | 780 - 1180 mm |
| Air supply | 8 - 10 bar |
| Lifting frame depth | 250 mm |
| Air consumption | 400 - 700 l/min |
| Weight (without mounting brackets) | 120 kg |
Modern vehicles are steadily getting wider to meet drivers’ growing demand for comfort and space. At the same time, the rise of electric vehicles is changing workshop requirements, particularly when it comes to handling heavy batteries safely.

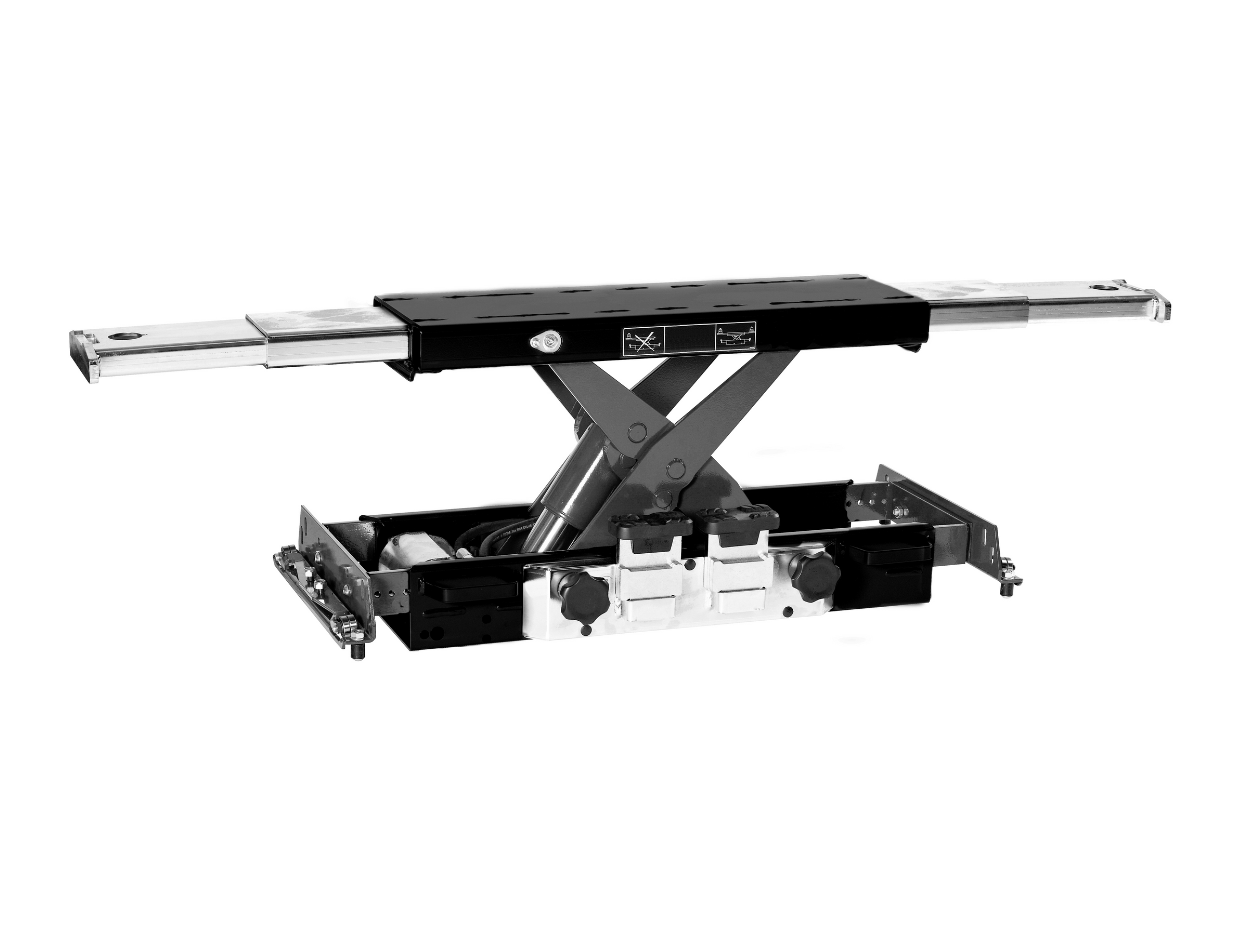

In response, we are proud to introduce the new wide-range Continental jacking beam, now extending up to 1865 mm. This new model retains all the popular features of our previous jacking beams while adding flexibility for wider vehicles:
Flexible top support beam: Extends up to 1865 mm to accommodate a wide range of vehicle sizes.
Low-profile design: Closed height of just 190 mm, ideal for vehicles with low ground clearance.
Efficient lifting: Faster and more reliable pump ensures quick operation.
Universal fit: Height-adjustable mounting brackets to suit any lift.
Enhanced safety: Two-hand lowering operation with dead man’s release, plus an automatic safety locking device and overload valve for maximum protection.
The new wide jacking beam combines versatility, safety, and efficiency, making it the perfect solution for modern workshops handling both conventional and electric vehicles.
Crypton services support you throughout the life of your equipment, including product support, manuals, warranty, and ongoing care—helping you keep your workshop running smoothly and confidently.
