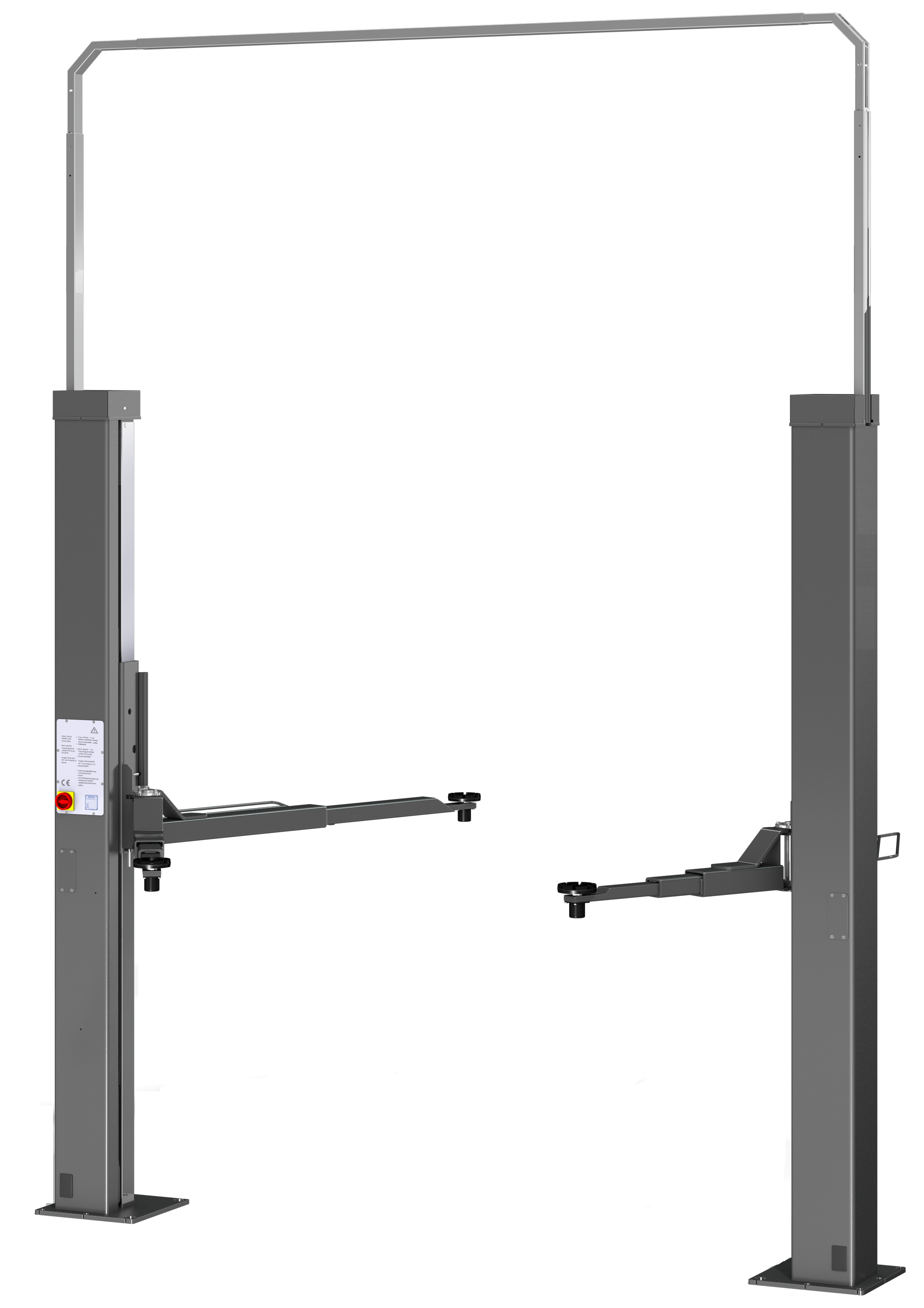

2 Post Lift 3000kg

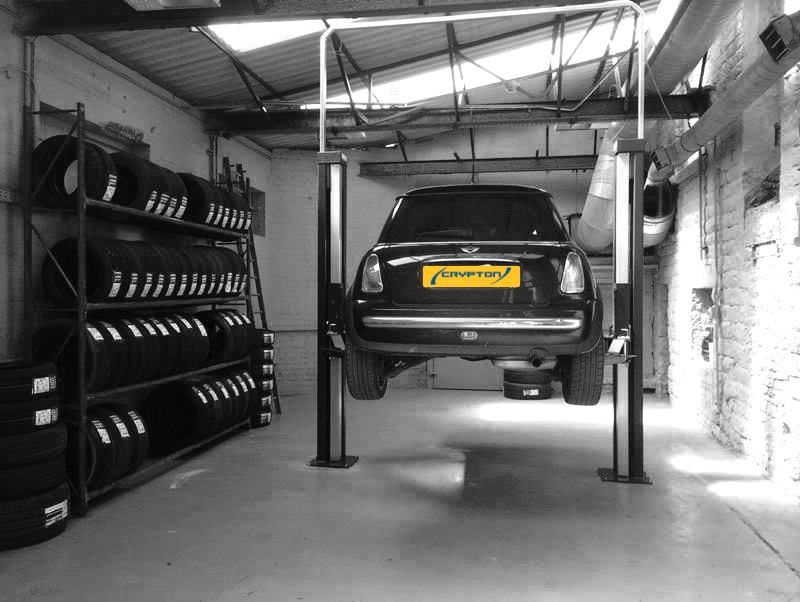

This 2 post lift is electro-mechanically operated and suitable for lifting cars, vans and light trucks up to 3000kg.

Its baseless structure allows you to lift vehicles from the lowest lifting point. With its height-adjustable cable bridge, it offers flexible installation to fit into any vehicle workshop.

Its high-quality and robust construction has assisted mechanics in their everyday service tasks for many years. What's more, the arms and columns are powder-coated to protect the lift against dirt and weather for a long-term investment.

Technical Specification

Capacity	3000kg
Motor data	2 x 2,5kW / 20A / 400V
Lifting- / lowering time	50s
Lifting height	2005mm
Set-up height	2550mm
Set-up width	3315mm
Drive-through width	2320mm
Long arm extension min.	830mm
Long arm extension max.	1330mm
Short arm extension min.	430mm
Short arm extension max.	830mm
Swivel in height**	85mm
Clear distance column	2650mm

Features

Electronically synchronised columns made of hot-rolled profile steel
Columns turned by 30° (improved angle for door opening)
Short swivel arms movable from both sides
Bronze alloy load nut / cast alloy safety nut
Carriage with 4 maintenance-free roller bearings
Broken nut raise lock-down feature
Covering of post interior
Acoustic foot protection
Cushioning door stop, adjustable pick up plate
(approx. 25 mm)
Lockable operating device with reversing contactor
Automatic arm locking device with manual release function
Protection class IP54, GS-approved, DIN EN 1493,
CE-certificate

Frequently asked questions

The clearance allows you to drive through and lift a vehicle with a low lifting point, such as sports cars.

The beauty of Crypton's 2-Post lift is it's flexibility with the ability to adjust the height during installation from as low as 3,720mm.
