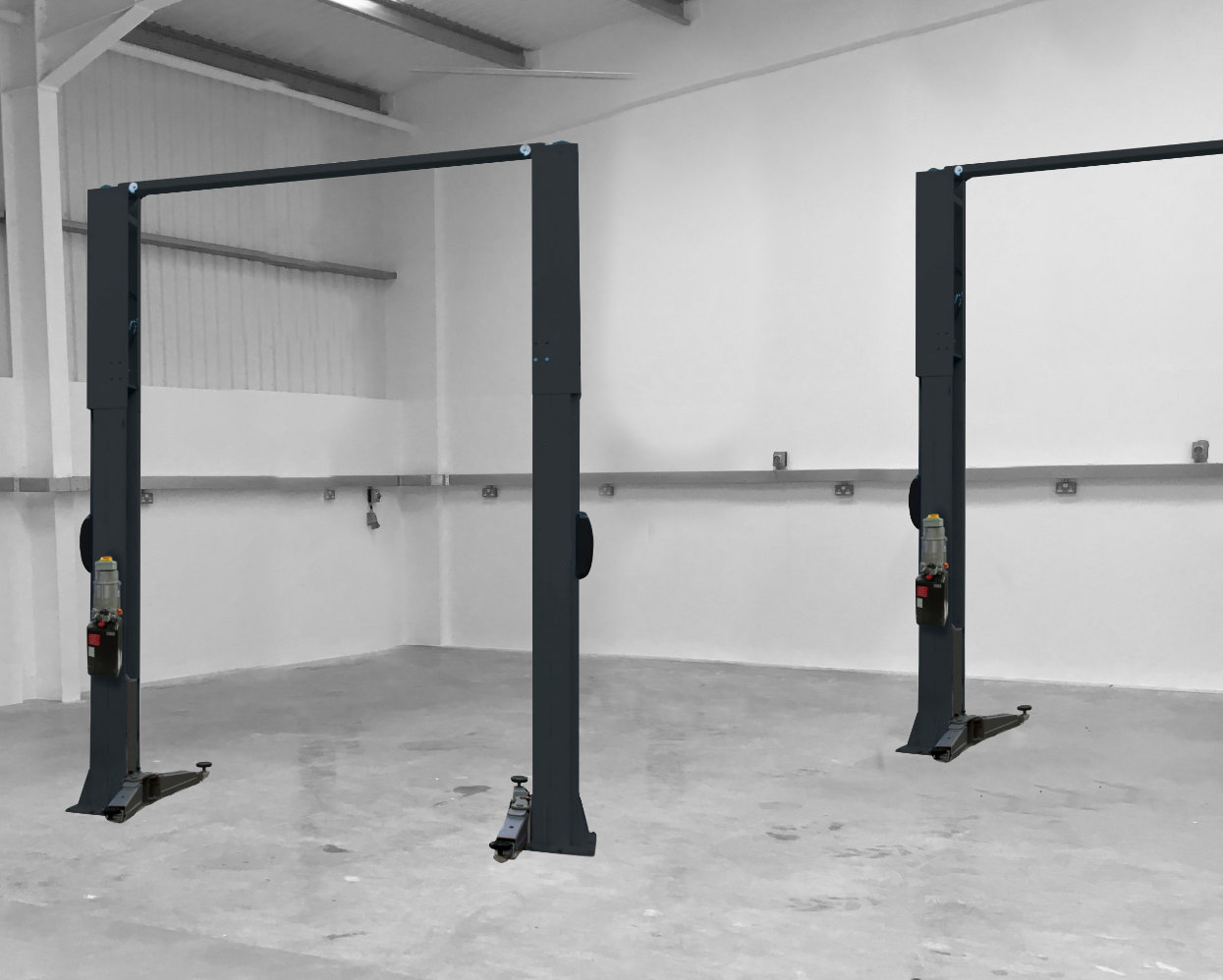

This 2 post lift is electro-hydraulically operated for lifting cars, vans and light trucks up to 4200kg.

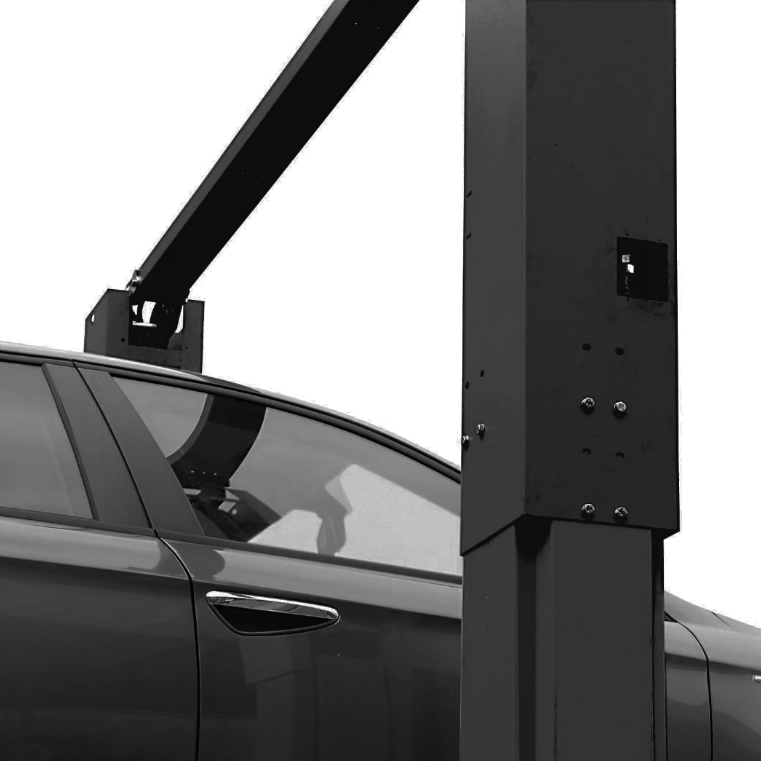

It is equipped with four long 3-stage symmetrical arms to extend or collapse to the length required for lifting the vehicle from the middle or long wheel-base vehicles with a load in the rear. It's symmetrical arms also offer the greatest amount of drive through space and for getting in and out of the vehicle.
| Capacity | 4,200kg |
| Lifting height | 2,008mm |
| Lowest lifting point | 95mm |
| Height of columns | 4,162mm / 4,987m |
| Overall width | 3,406mm |
| Distance between columns | 2,670mm |
| Short arm | 722mm |
| Long arm | 1,436mm |
| Lifting time | 40 seconds |
| Lowering time | 40 seconds |
| Power supply | 3Ph, 400V, 50Hz |
| Motor | 2.6kW |
| Weight | 750kg |
| Sound level | ≤70dB |
| Connection by customer | Fuse 16amp (motor rated trip) |
| Concrete | Quality: C20/25 Depth: 200mm |
